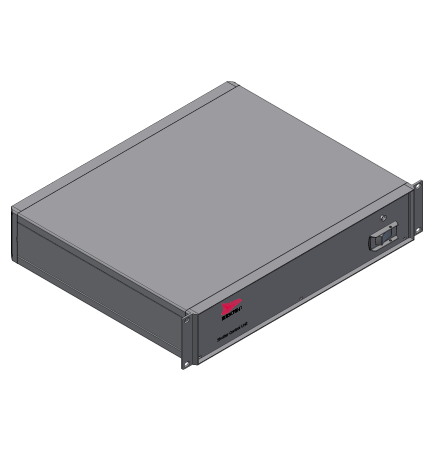

Motion control unit SCU6 (0000-08309)

Motor type

Brushless DC motor with integrated gear box & incremental encoder (typically used for shutters)

Motor connections

6x Sub D 9 socket

Motor state inputs

For each motor axis (at corresponding motor connection)

  • 1x Reference switch or limit switch
  • 1x Encoder signal (incremental encoder)

Motor load

max. 3A  at each motor channel

(Controller limit for synchron motion: max. 10A all axes combined)

Power connection

IEC connection cable (CEE 7/7 Plug to C13, 2m)
