P403 – PGM_hard EMIL BESSY
Application
Plane grating monochromator (PGM) for hard X-ray synchrotron radiation
Year of delivery
2015
Installation site
EMIL hard X-ray beamline at BESSY, Helmholtz-Zentrum Berlin, Germany
This hard X-ray monochromator is part of the combined hard and soft X-ray EMIL beamlines at BESSY. The vacuum chamber accomodates not only the actual beam but also the passing soft X-ray beam. For DCM operation the hard X-ray beam passes without deflections through this monochromator. For PINK operation the hard X-ray beam either passes without deflection or is deflected by two mirrors. In all EMIL systems we integrated for the first time electrodes for carbon contamination prevention of the optical surfaces. In this monocromater we additionally installed provisions for RF oxygen plasma cleaning.
Design Features
-
High-resolution grazing incidence plane grating monochromator (PGM).
- Spectral range: 2 – 10 keV.
- Optical elements: one plane mirror and two plane gratings.
- Temperature sensors at mirror and gratings chin guards.
- Electrodes at mirror and gratings surfaces for carbon contamination prevention.
- Provisions for RF oxygen plasma cleaning of the optical surfaces.
-
Active water cooling of all optical elements.
- Permanently installed bakeout provisions.
- Adjustable support structure.
Performance Features
- High positioning resolution (minimum incremental motion).
- High pitch rotation stability and repeatability.
- Minimized mounting induced deformations.

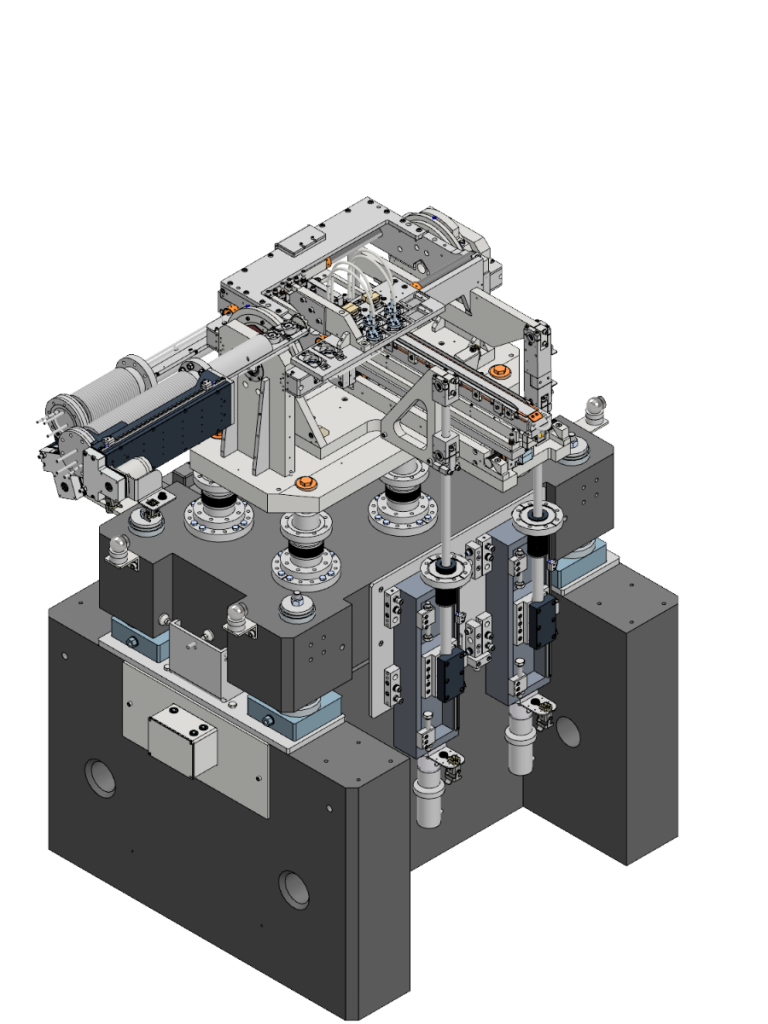

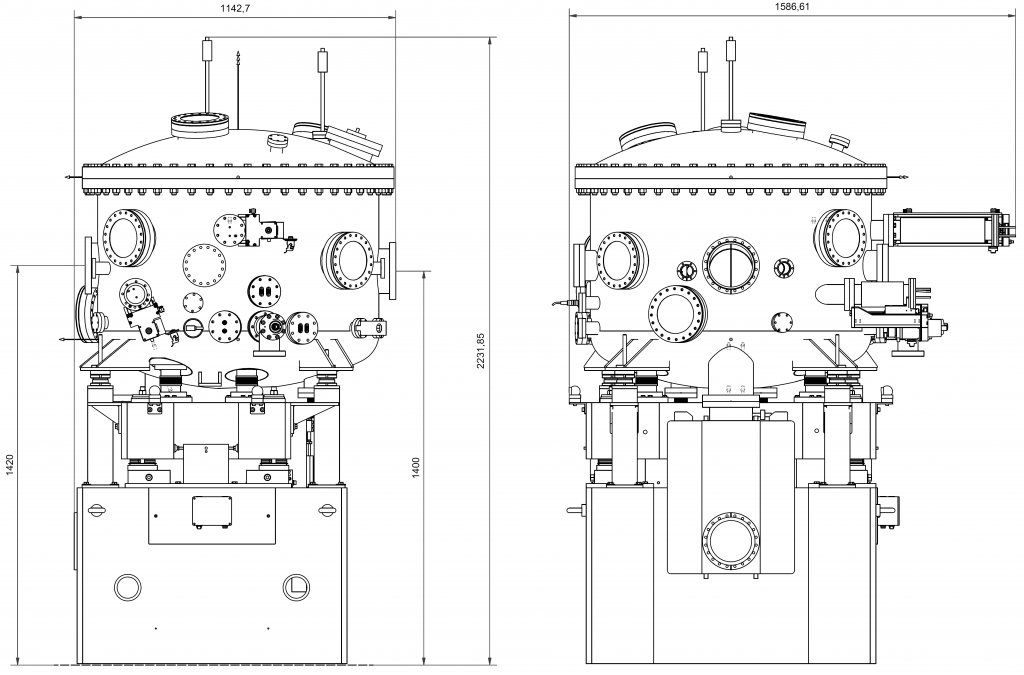

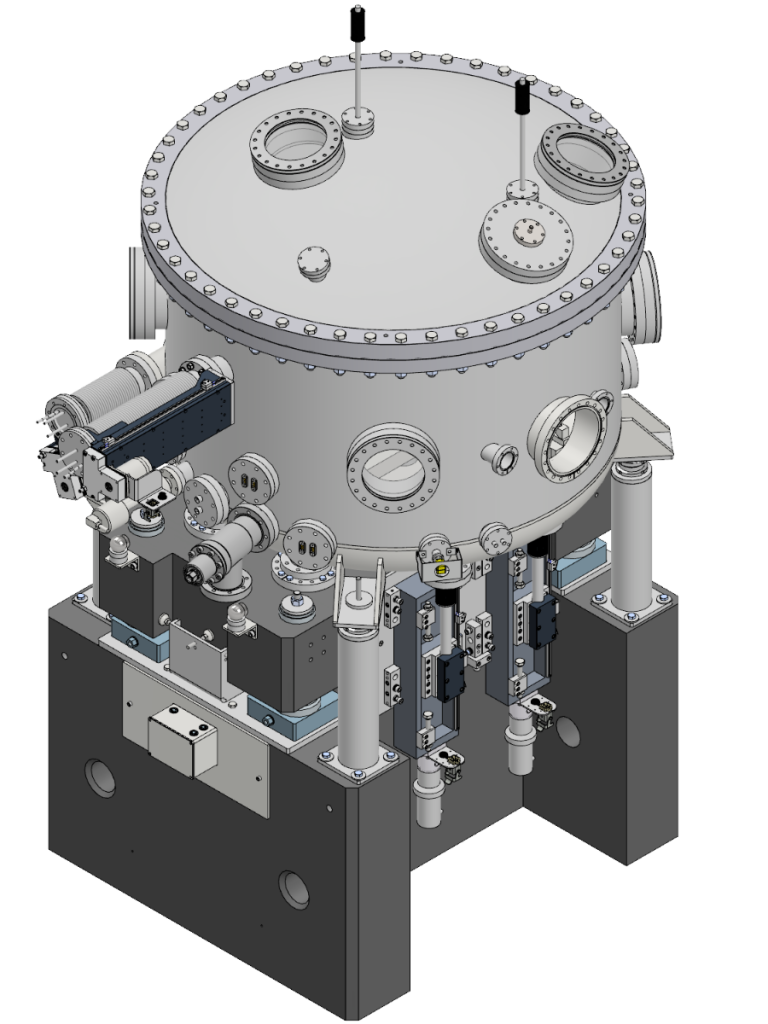

Outer Dimensions
Technical specifications and performance values
General
Vacuum chamber
Chamber type
cylindrical, vertical axis
Main flanges
at the top
Material
1.4404 (C < 0.02%)
Base pressure
10-10 mbar range
Optical design parameters
Beam height (entrance)
1400 mm
Beam offset
20 mm
Number of plane mirrors
1
Plane mirror dimensions
500 mm x 30 mm x 60 mm
Number of gratings
2
Gratings dimensions
100 mm x 20 mm x 40 mm
Support structure
Adjustment ranges
Vertical translation
± 10 mm
Lateral translation
± 10 mm
Longitudinal translation
± 10 mm
Pitch
± 1°
Roll
± 1°
Yaw
± 1°
Mirror mechanics
Pitch rotation
Range
-13.3° to +0.95°
Resolution (design value)
0.004 µrad /motor fine step
(1/64, recommended)
0.00146 µrad /encoder count
Resolution (measured value)
0.50 µrad
Repeatability
0.11 µrad (pitch)
0.09 µrad (roll)
Stability
0.09 µrad
Translation
Range
79 mm
Resolution (design value)
0.05 µm /motor fine step
(1/64, recommended)
0.005 µm /encoder count
Repeatability
0.20 µrad (pitch)
0.15 µrad (roll)
Grating mechanics
Pitch rotation
Range
-16.5° to +0.63°
Resolution (design value)
0.004 µrad /motor fine step
(1/64, recommended)
0.00146 µrad /encoder count
Resolution (measured value)
0.50 µrad
Repeatability
0.08 µrad (pitch)
0.07 µrad (roll)
Stability
0.06 µrad
Translation
Range
195.5 mm
Resolution (design value)
0.05 µm /motor fine step
(1/64, recommended)
0.005 µm /encoder count
Repeatability
0.14 µrad (pitch)
0.20 µrad (roll)
Performance Test Results

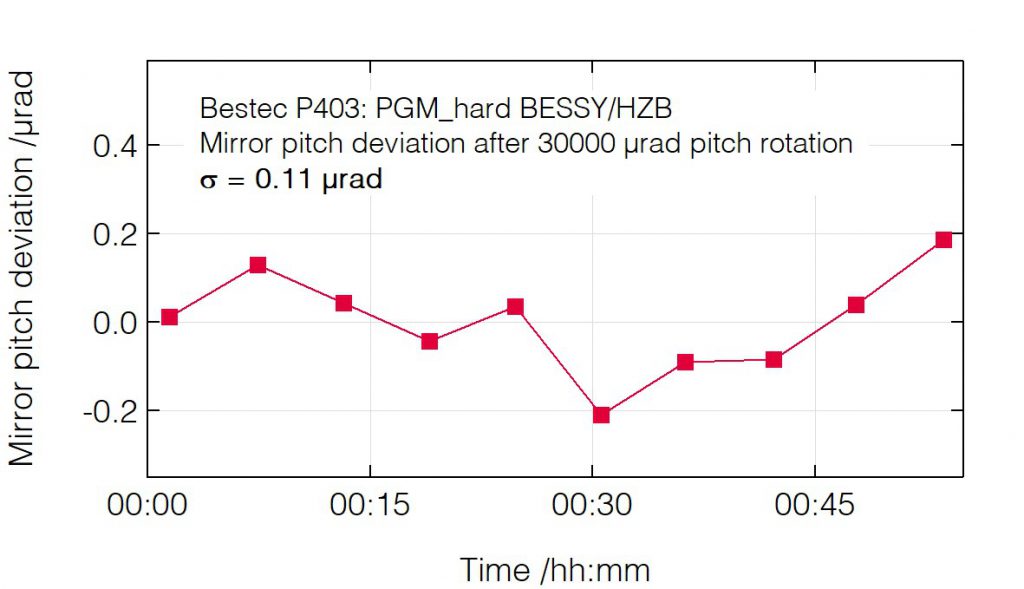

Pitch deviation after pitch change (mirror)

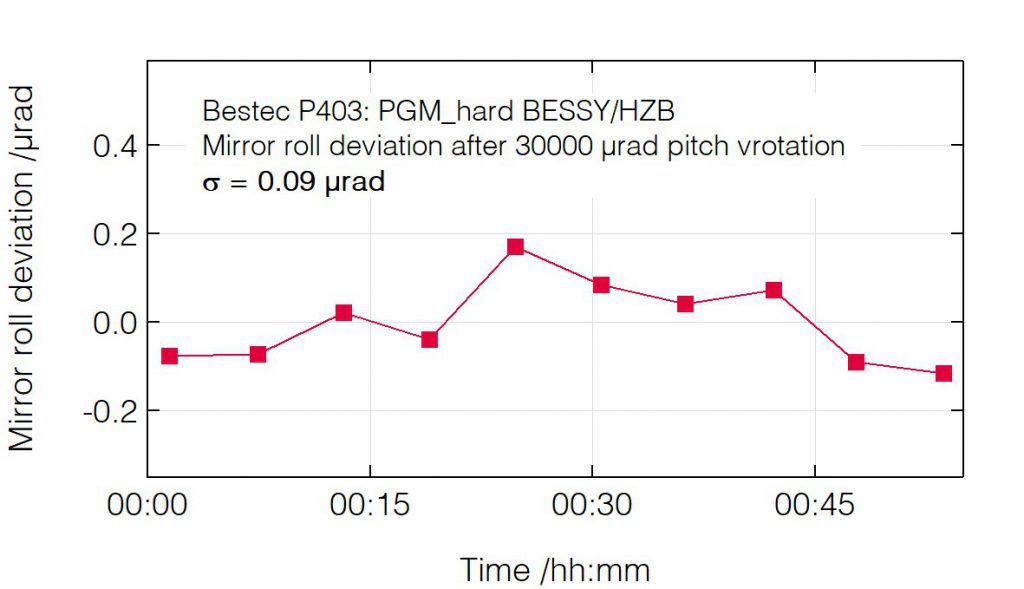

Roll deviation after pitch change (mirror)

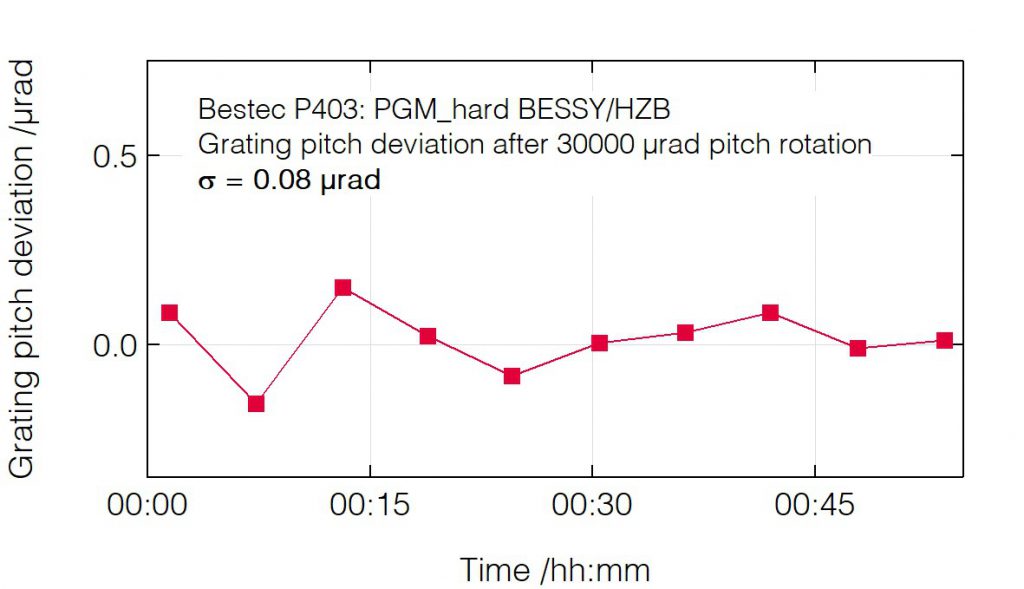

Pitch deviation after pitch change (grating)

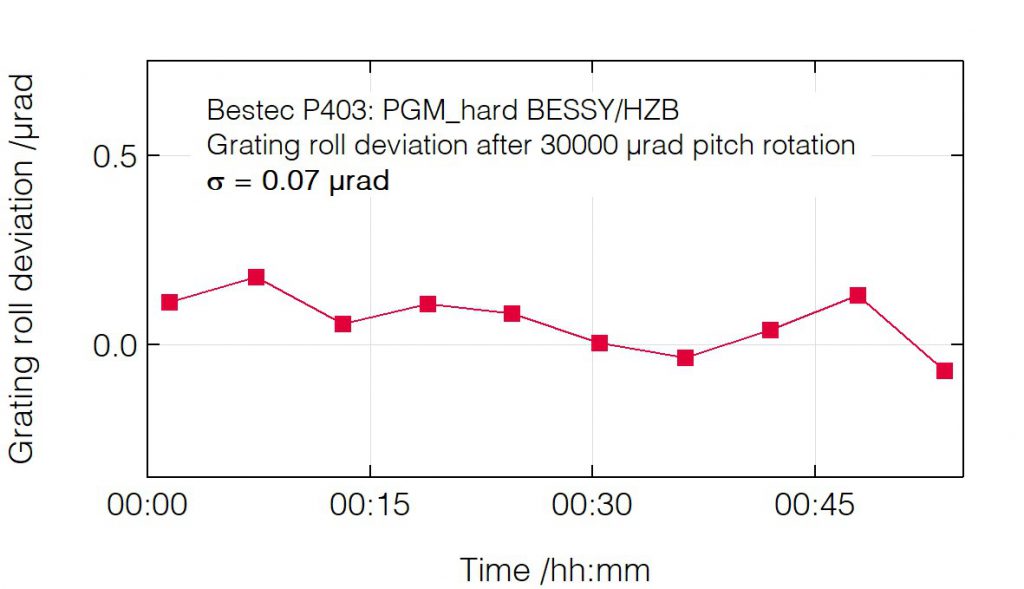

Roll deviation after pitch change (grating)

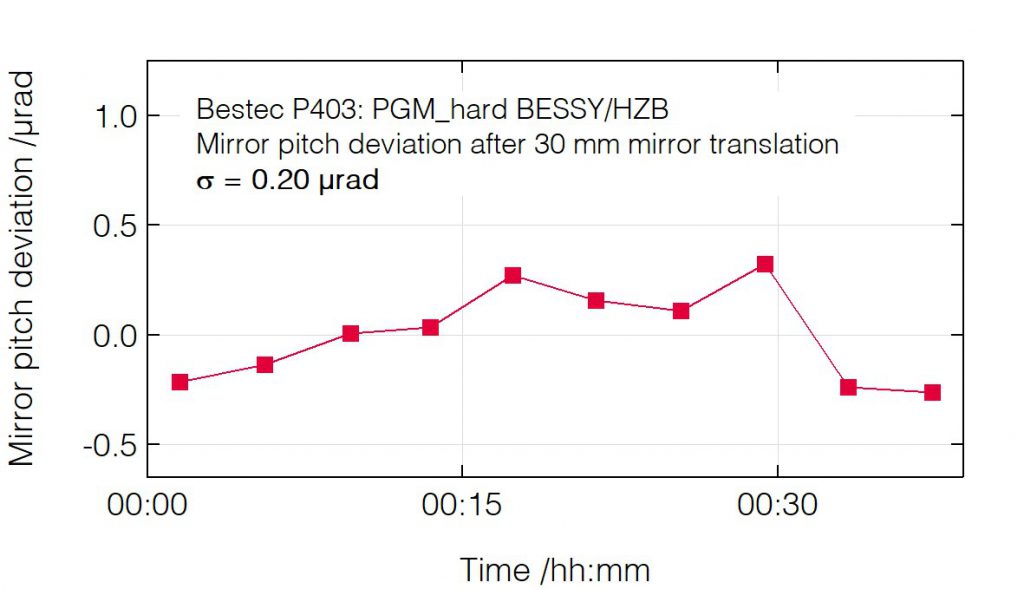

Pitch deviation after mirror translation

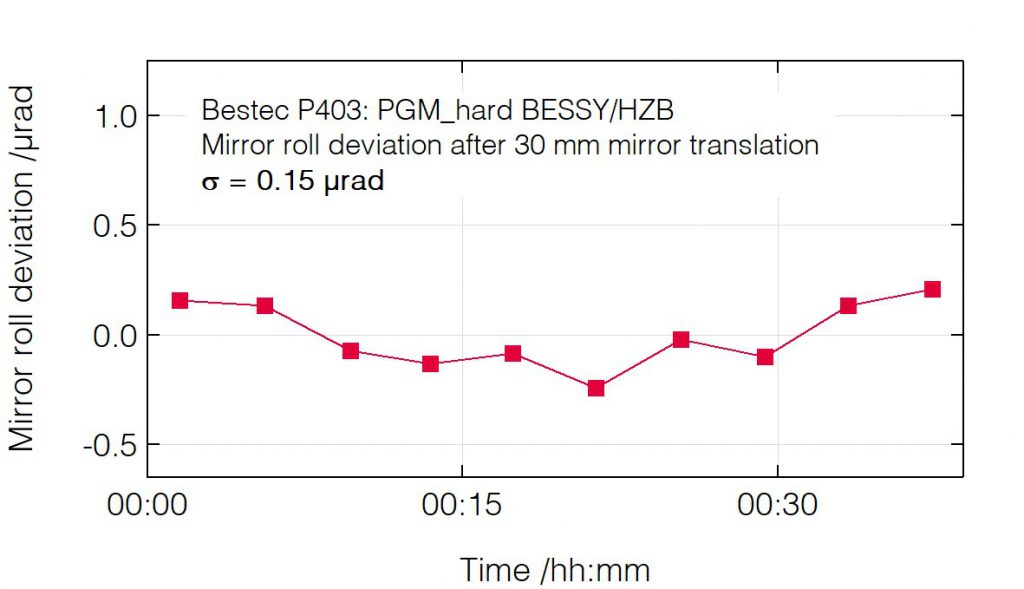

Roll deviation after mirror translation

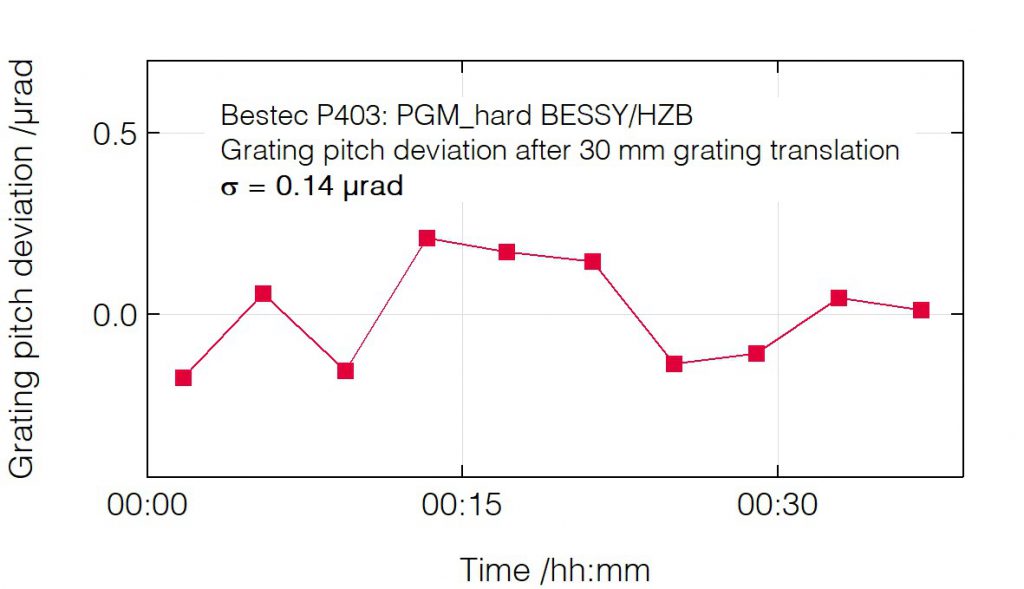

Pitch deviation after grating translation

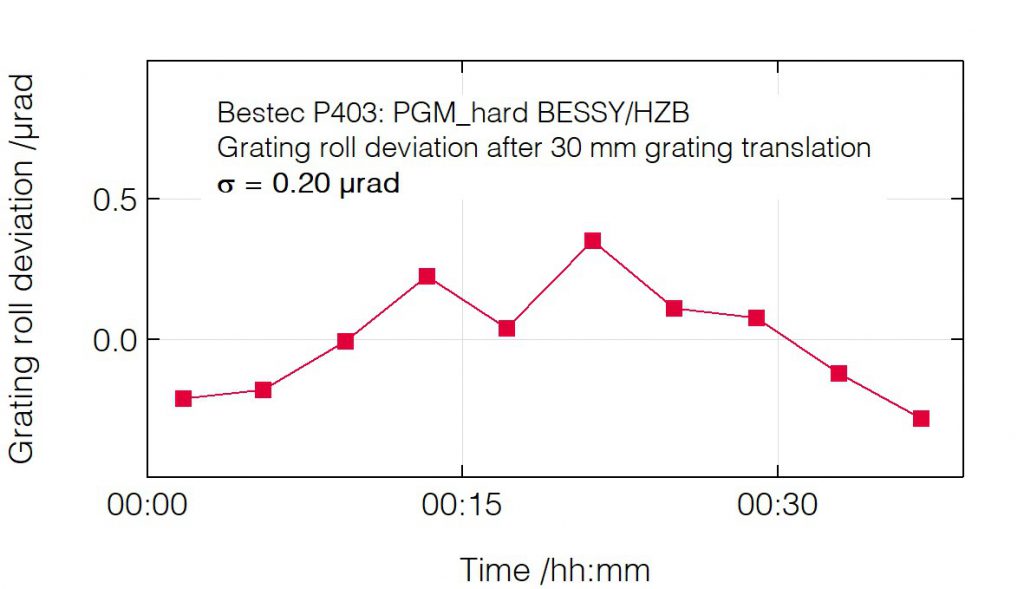

Roll deviation after grating translation

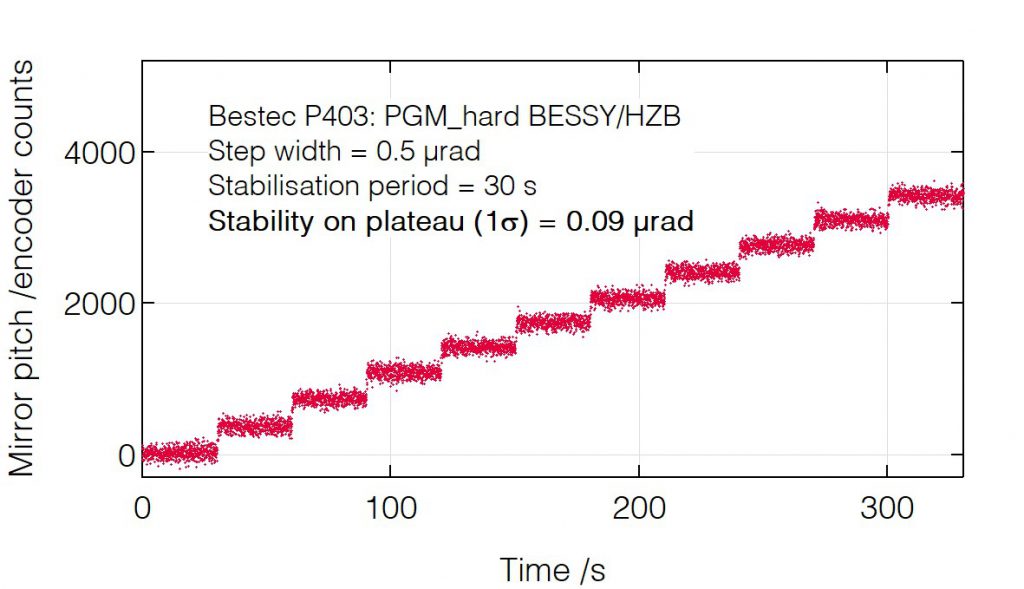

Mirror pitch positioning resolution

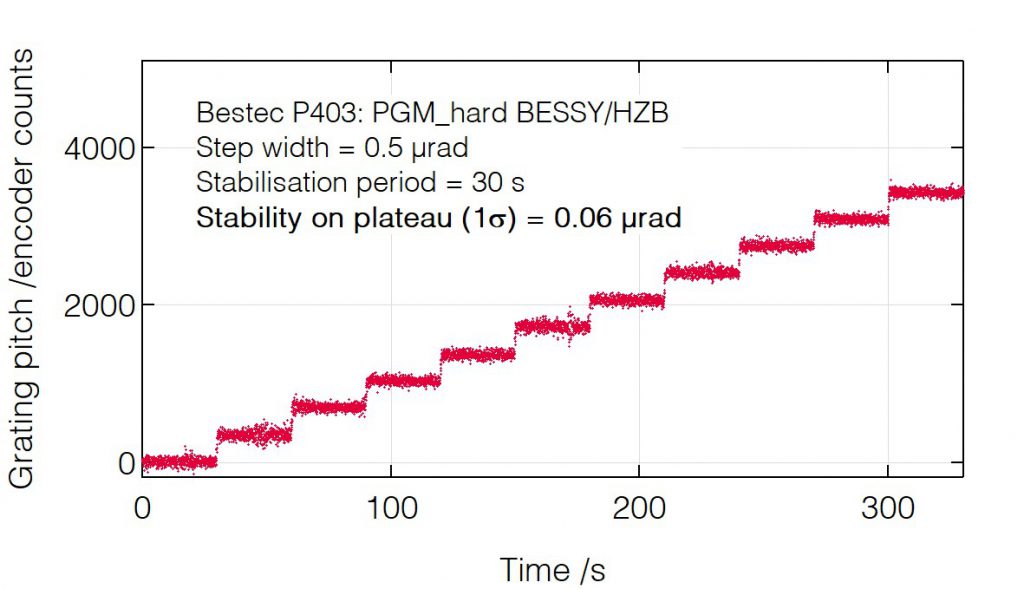

Grating pitch positioning resolution

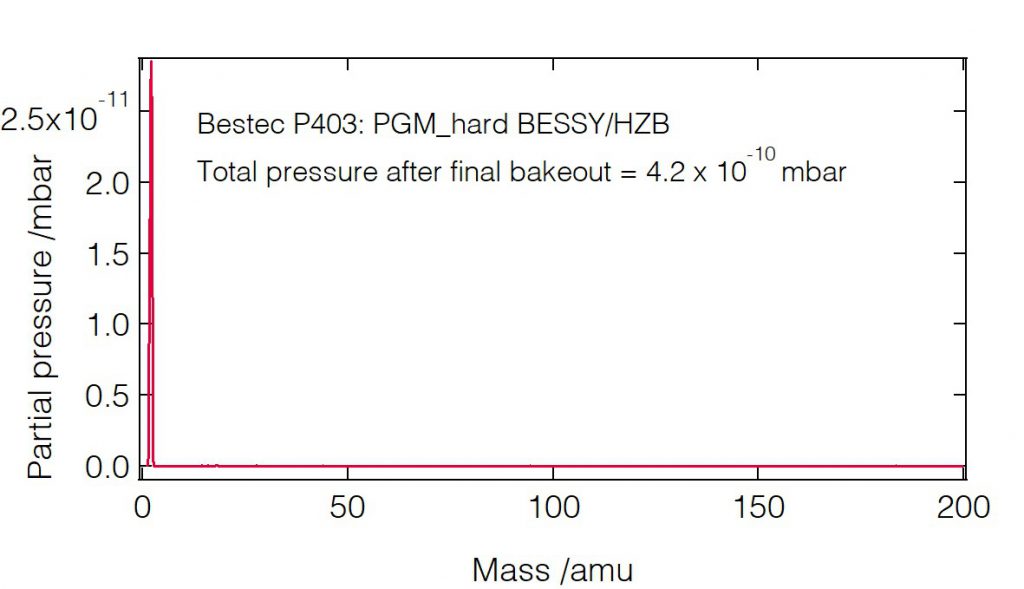

Residual gas analysis
